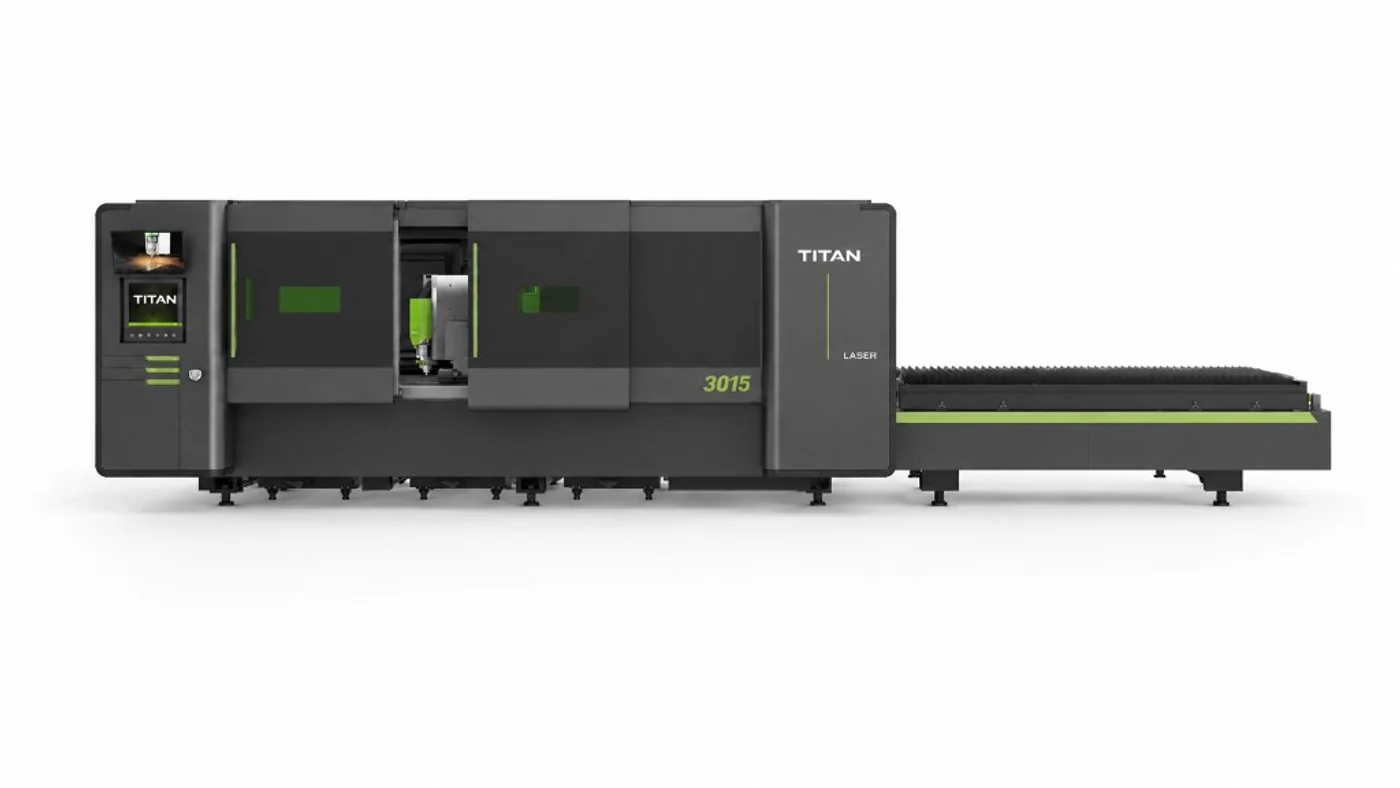

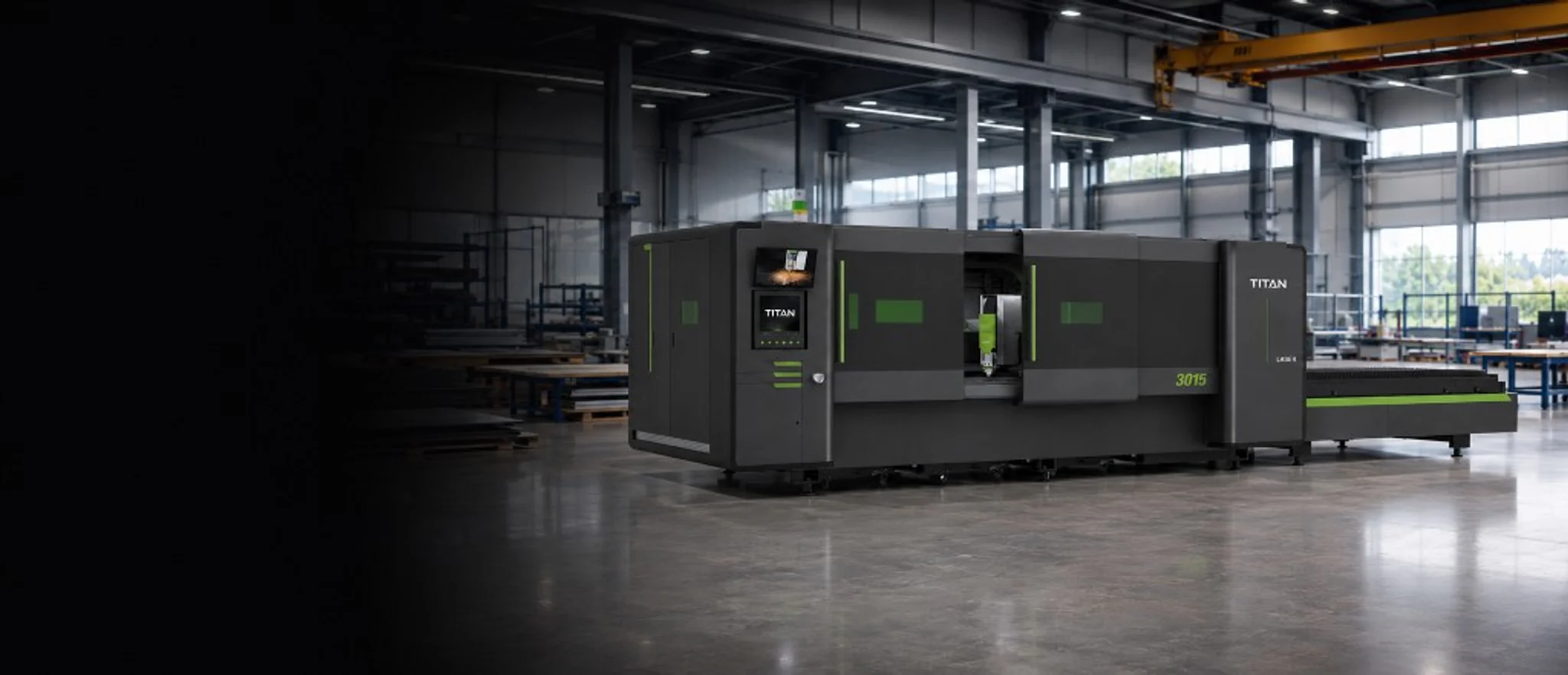

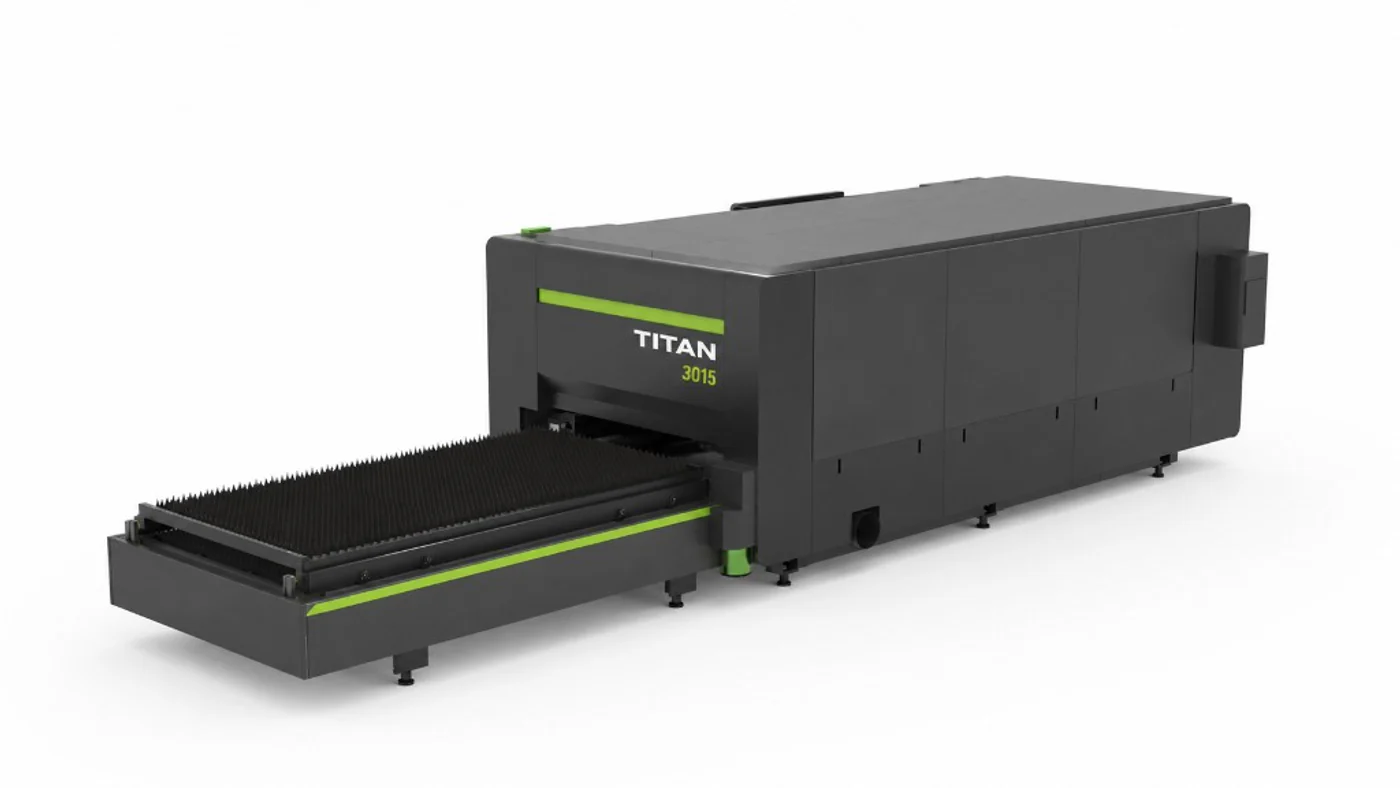

Titan FP3015 Flatbed Fibre Laser

The Titan FP3015 is the highest-performance dual-shuttle flatbed fibre laser in the Titan 3015 family — built for UK manufacturers running laser cutting as a core production process. Premium Yaskawa servo drives, Gudel rack and Rexroth linear guides deliver faster axis speeds, higher acceleration and tighter repeatability than compact shuttle alternatives. While one table cuts inside the enclosed work zone, the second waits outside for loading and unloading.

Built for subcontract specialists and production fabricators where daily sheet volume, thicker plate programmes and maximum beam-on time justify premium motion engineering up to 20kW.

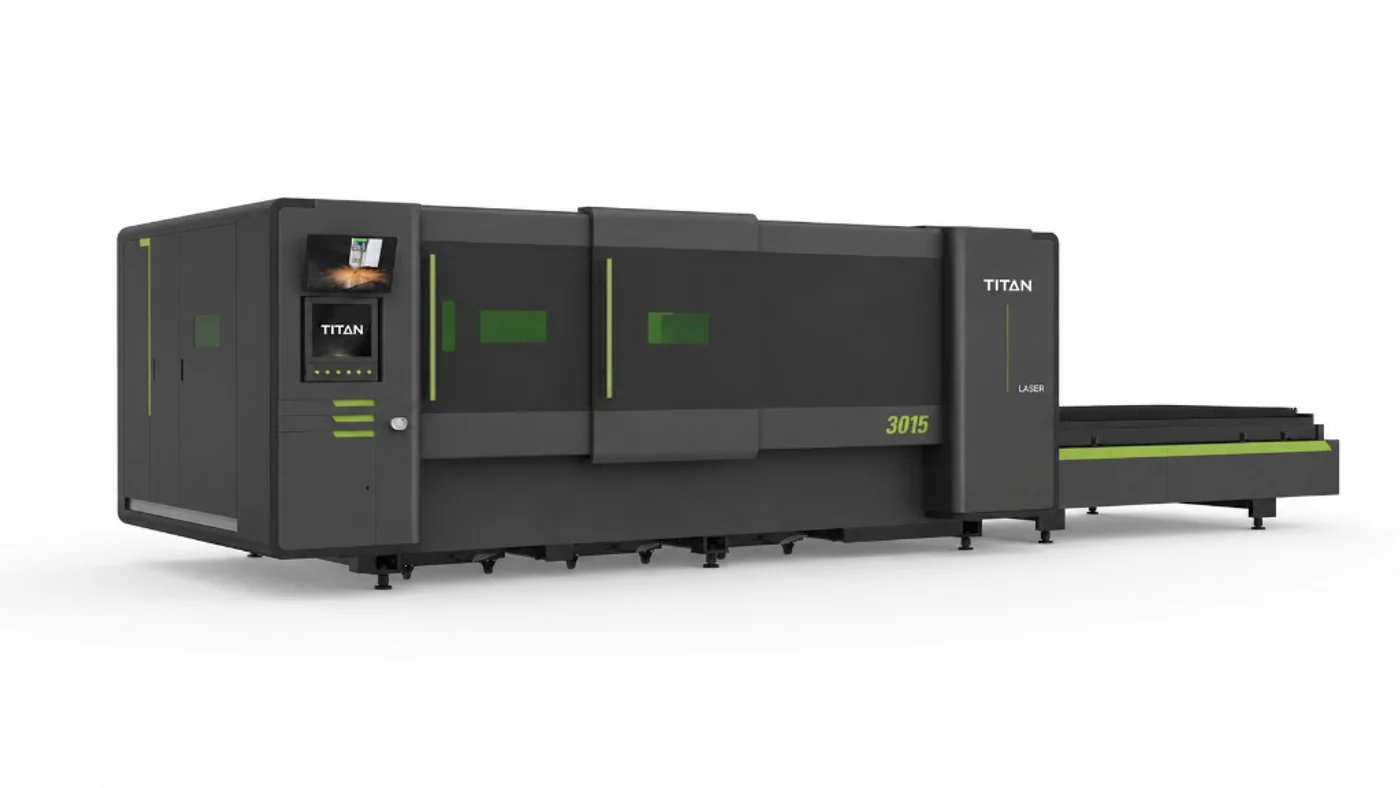

Automatic shuttle exchange

Dual tables swap in approximately 15 seconds while the laser continues cutting on the alternate bed. The operator prepares the next sheet outside the cutting zone — so machine time is spent cutting, not waiting for manual loading cycles between programmes.

For workshops where daily output depends on how many sheets move through the shift, not how fast one operator can reload a single table.

Premium motion engineering

Yaskawa servo drives, Gudel rack and pinion and Rexroth linear guides deliver 100 m/min single-axis and 188 m/min coordinated speeds with 1G / 1.7G acceleration — faster positioning and shorter cycle times than compact shuttle alternatives.

When production economics depend on parts per hour across hundreds of features per shift.

Up to 20kW power

The only Titan 3015 platform with a 20kW tier — matched to high-volume production, thicker plate programmes and the fastest cycle times the 3015 bed supports. FSCUT8000C control at 20kW for maximum production duty.

For subcontractors and manufacturers where thicker gauge and higher daily volume justify maximum source output.

Tighter production accuracy

0.03 mm/m positioning accuracy and ±0.02 mm repeatability support assembly-critical hole patterns, tabs and repeat batch work where the tenth order must match the first — not just commissioning samples.

Important when customers inspect every batch and rework erodes subcontract margin.

Higher production output

Shuttle automation, premium motion and power options up to 20kW combine for maximum beam-on time. The FP3015 is engineered for workshops where laser utilisation — not occasional cutting — determines return on investment.

Suited to subcontract businesses quoting on daily sheet volume and delivery reliability.

Heavy-duty construction

Approximately 7500 kg machine weight, up to 1100 kg table load and industrial component specification reflect high-production duty — built for workshops where the laser runs daily on heavier plate programmes.

When repeat orders depend on the machine staying aligned and available through full production weeks.

Compare with /fiber-laser-cutters/titan-f3015b-flatbed-fibre-laser/
