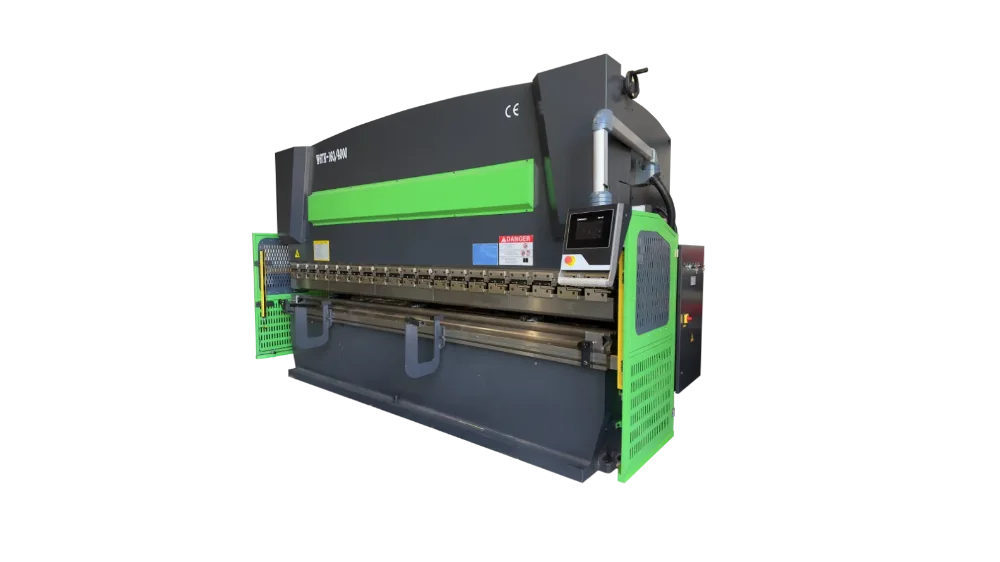

RHINO TORSION BAR · AFFORDABLE CNC PRESS BRAKES

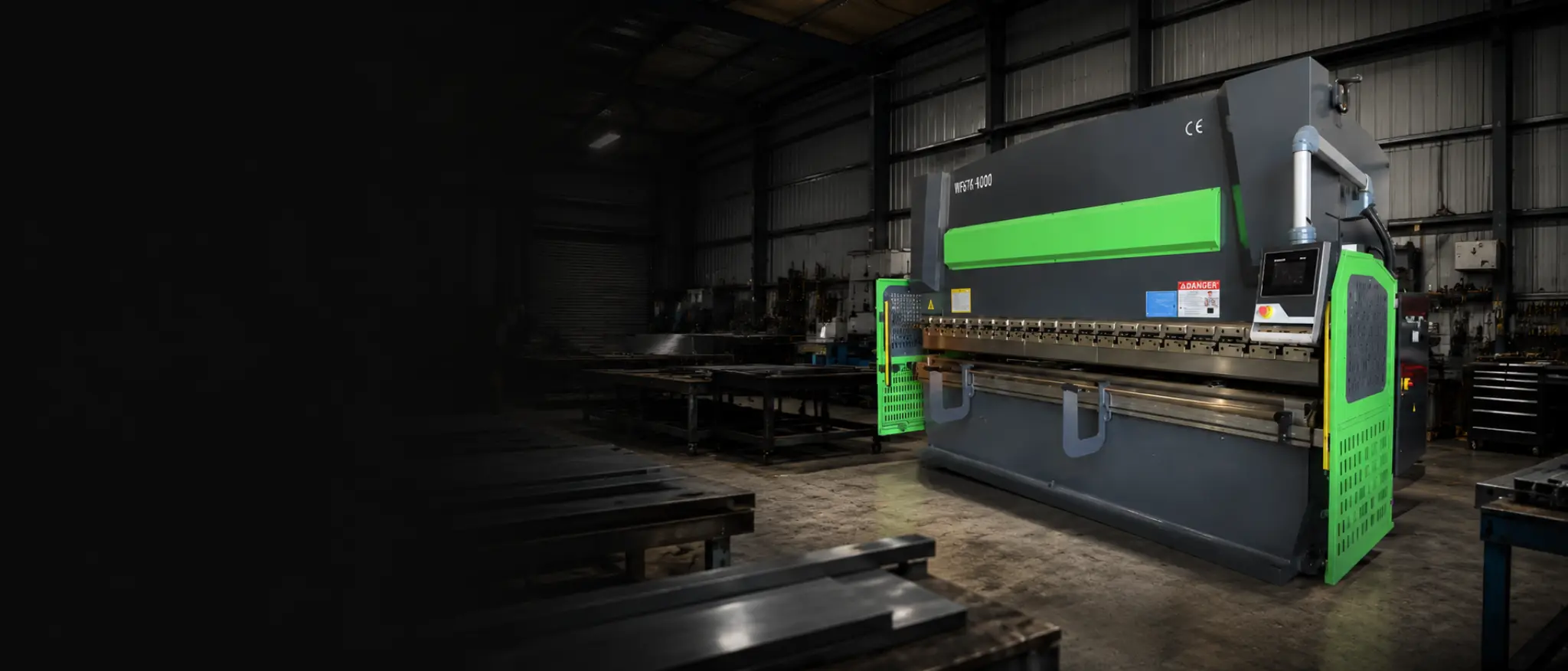

Rhino Hydraulic Press Brakes deliver accurate, affordable CNC sheet metal bending for UK fabrication workshops — Delem DA-41T touchscreen control, motorised backgauge and Euro tooling standard across the W67Y torsion bar range.
31 bed × tonnage configurations from 1.3M × 40T through to 6M × 400T — supplied, installed, commissioned and operator-trained by Mantech UK engineers in Halesowen.
Also see Rhino Premium CNC press brakes for high-accuracy 3+1 to 8-axis hydraulic systems.
UK supply, install & support
Machine positioning
Build straighter, faster bends without the premium price. Mantech’s affordable Rhino torsion bar range combines Delem DA-41T touchscreen control with motorised backgauge and Euro tooling for right-first-time results across UK fabrication shops.
7" TFT · 100 × 25 programs · USB backup

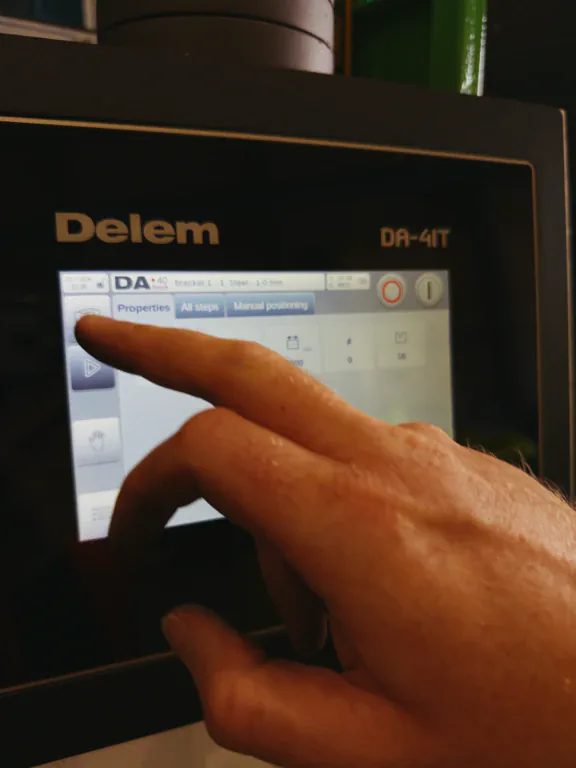

Intuitive Touchscreen Controls for Seamless Operation
Delem DA-41T touch CNC with 7" widescreen colour display — angle programming, tool library access and up to 100 programs with 25 steps each for repeatable production setup.

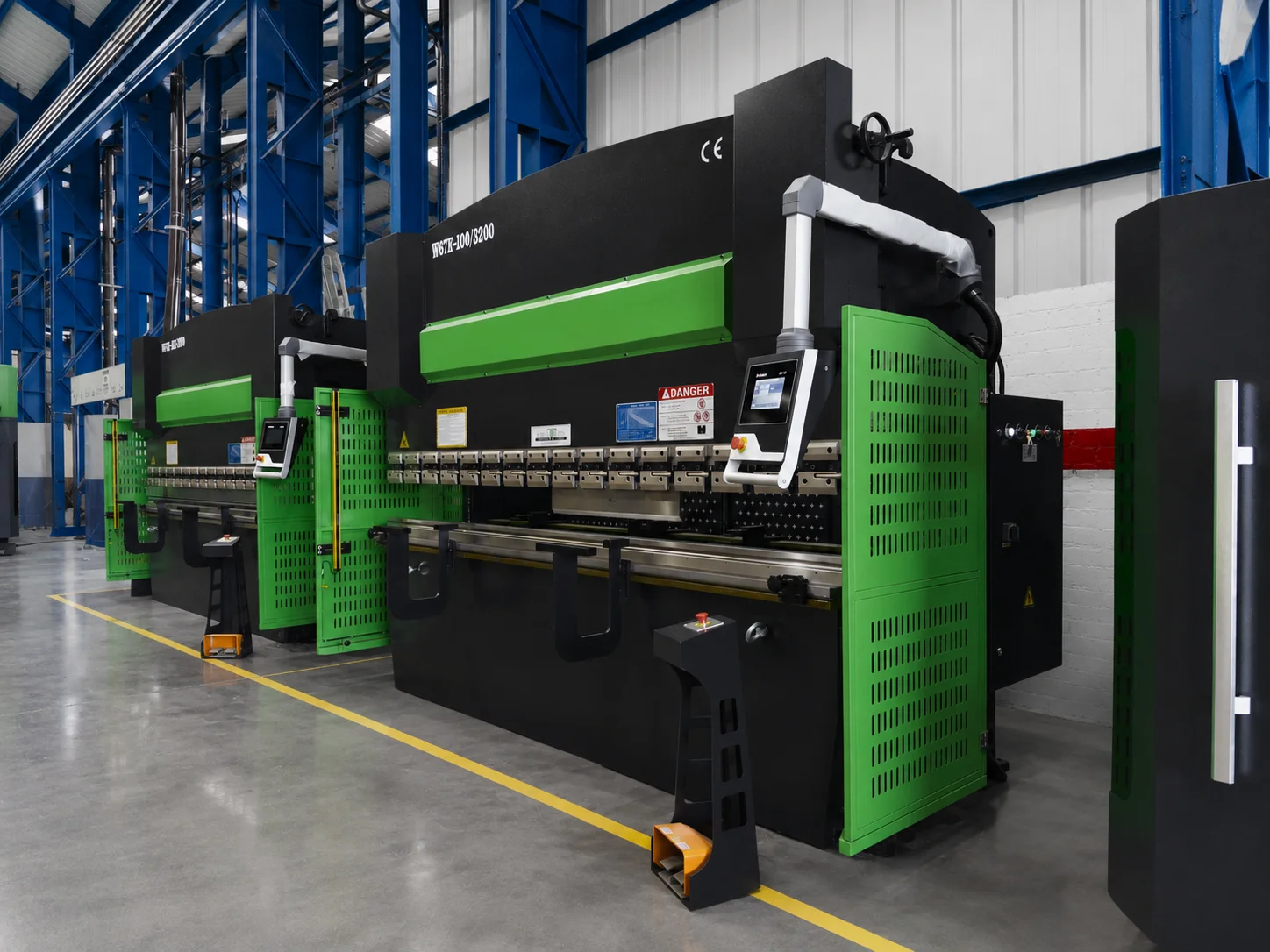

W67Y torsion bar series · 31 configurations
Versatile Press Brake Sizes & Capacities
Rhino Hydraulic Press Brake configurations from 1.3M to 6M bed length and 40T to 400T bending force — a model for every fabrication requirement from compact cells to heavy-duty platforms.
Balanced ram · consistent air bending
Torsion Bar System for Enhanced Operator Control
The integrated torsion bar system ensures balanced ram movement, allowing for consistent, high-accuracy bends across the full W67Y model range.
Installation · training · 12-month warranty
Exceptional Service & Support
Our expert UK-based service team provides comprehensive support, with access to online guides, telephone assistance, and on-site commissioning from Mantech engineers in Halesowen.
Why Rhino Torsion

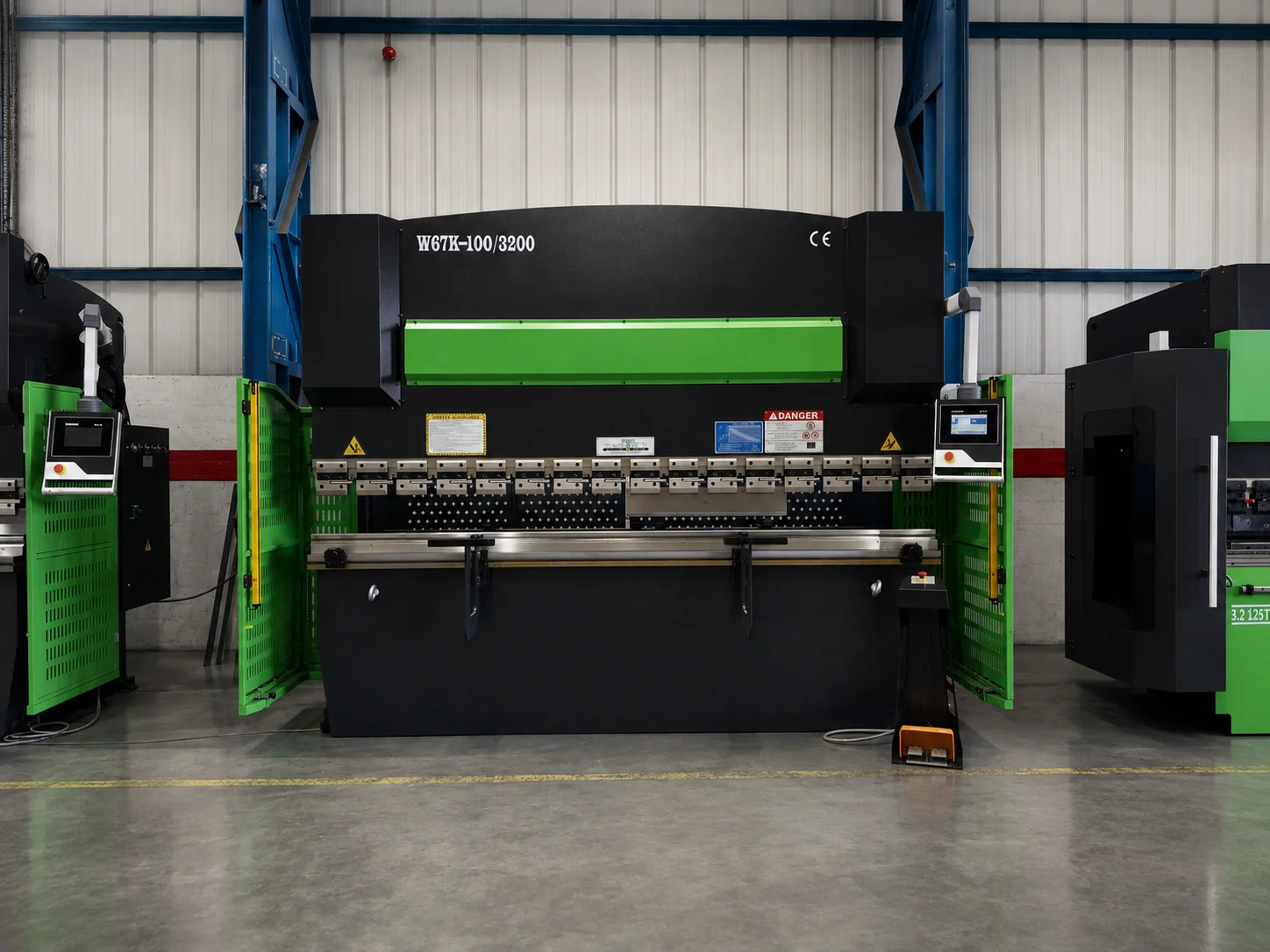

The Mantech Press Brake lineup delivers precision, efficiency, and durability across a wide range of sizes and capacities. With options ranging from 1.5m to 5m in length and 40T to 400T in tonnage, our press brakes cater to diverse metal fabrication needs, ensuring high-accuracy bending for various industries. For customised press brake solutions tailored to your specific production requirements, contact our expert Sales Technicians at 0121 541 1444.
Product & engineering
Engineered with a welded all-steel mono-block frame, our press brakes provide exceptional strength and rigidity. This ensures minimal deflection under load, guaranteeing precise and reliable bending performance for demanding industrial applications.
Product & engineering
Equipped with light curtain safety barriers, side and rear mechanical safety guards, and interlock switches, our press brakes prioritise operator safety, meeting strict industry safety standards to ensure secure and efficient operation.
Product & engineering

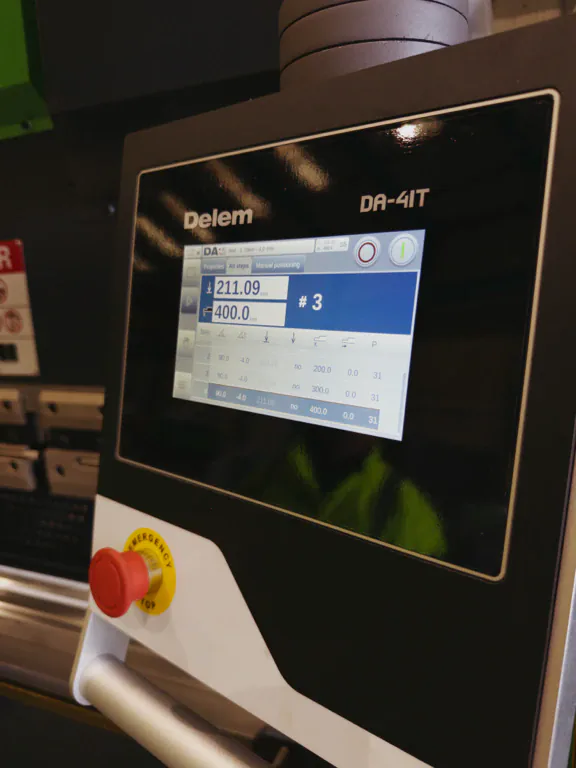

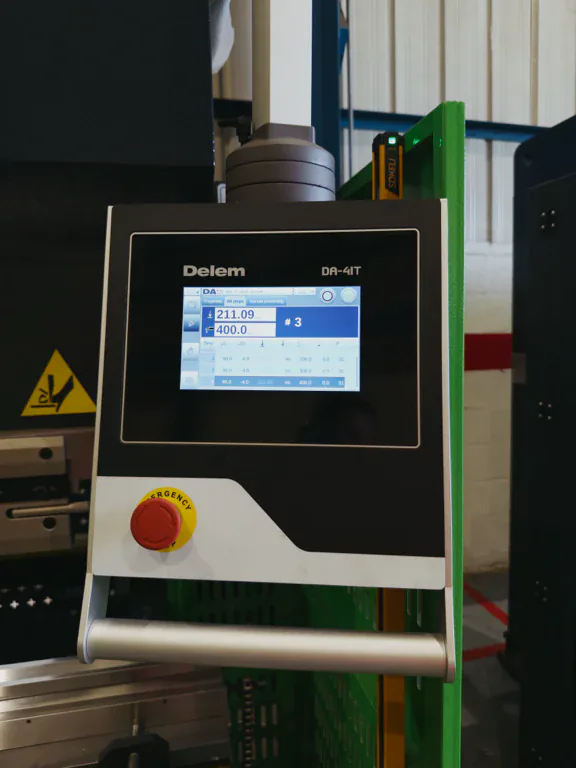

Featuring the Delem DA-41T CNC control, mounted on an ergonomic pendant system, our press brakes provide an intuitive touchscreen interface for accurate angle adjustments, tool selection, and efficient bending operations.
Ownership & support
The high-precision motorised back gauge, equipped with tiltable finger stops, provides precise material positioning, improving repeatability and overall bending accuracy.
Ownership & support
Supplied with a standard top tool and a multi-V bottom tool, our press brakes offer versatile bending capabilities, allowing users to tackle a wide range of sheet metal applications with precision.
Ownership & support
Our highly skilled UK-based engineers provide comprehensive installation, servicing, and training, ensuring seamless operation and ongoing support for your press brake system.
Torsion bar press brakes cover most everyday sheet bending — premium hydraulic systems step in when axis count and angle accuracy matter more. See Rhino Premium for high-accuracy CNC bending, browse fabrication installations from UK workshops, and the applications hub for typical metal fabrication workflows.
CNC bending software

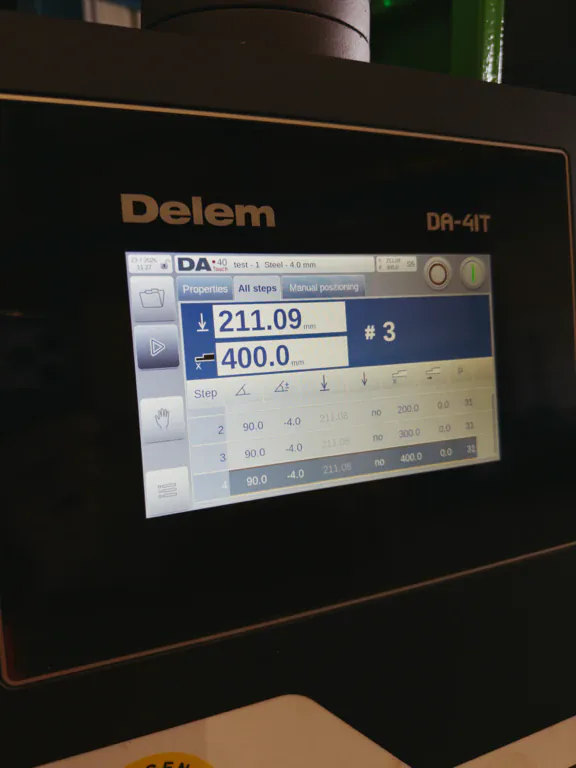

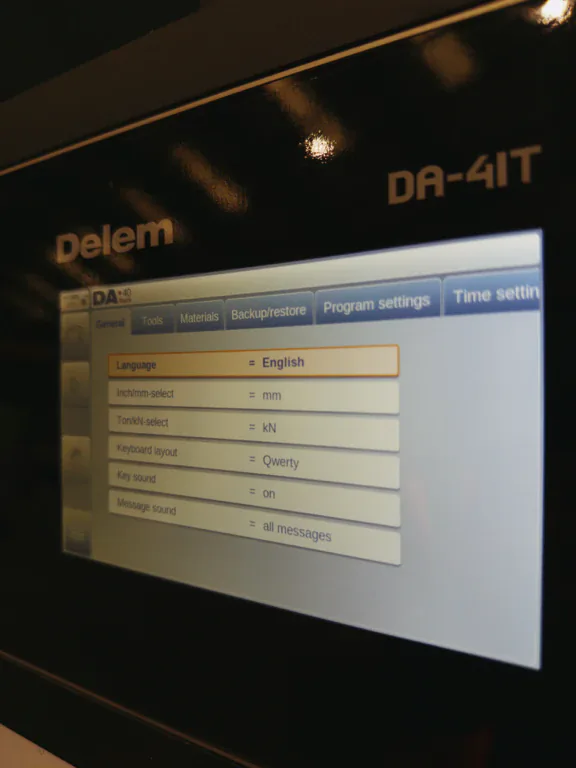

Delem DA-41T touchscreen CNC control — standard across the Rhino Hydraulic Press Brake range for intuitive programming, repeatable bends and everyday production work.
Control capabilities
7" widescreen · high-brightness TFT
Industrial-grade premium touchscreen with LED backlight, 1024 × 600 pixel colour display and full-screen capacitive touch control for clear, glove-friendly operation in the workshop.
100 programs · angle & tool setup

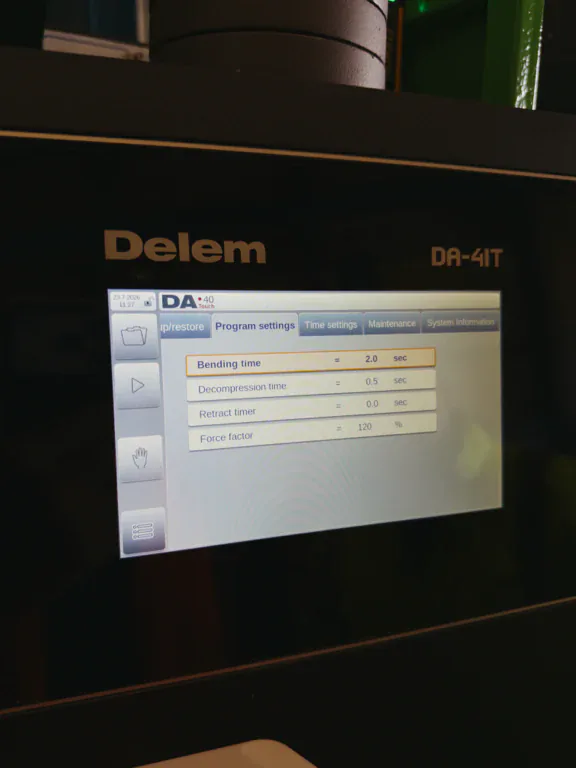

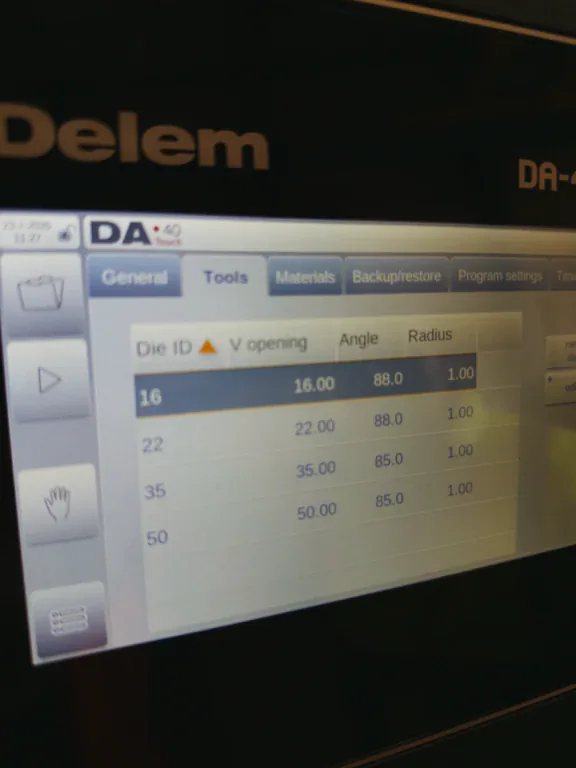

Store up to 100 programs with 25 steps per program. Angle programming, tool library access and material parameters are presented in a clear table overview that guides operators through setup.
Y-axis beam · X-axis backgauge
Controls press beam stop (Y-axis) and motorised backgauge (X-axis) with manual movement of all axes — supporting accurate flange positioning and repeatable production bending across everyday sheet metal work.
Consistent Delem touch language
Icon-led navigation matches Delem's wider touch control family, so operators recognise screens and workflows quickly. USB flash drive interfacing supports backup and restore of programs and tooling data.
Technical summary
| Control type | Delem DA-41T touch CNC |
|---|---|
| Mounting | Ergonomic pendant · operator station |
| Display | 7" widescreen colour TFT |
| Resolution | 1024 × 600 px · 32-bit colour |
| Touch interface | Full-screen capacitive (PCT-touch) |
| Backlight | LED |
| Program storage | 100 programs · 25 steps each |
|---|---|
| Programming | Angle · tool library · material parameters |
| Axis control | Y-axis beam · X-axis backgauge · manual all axes |

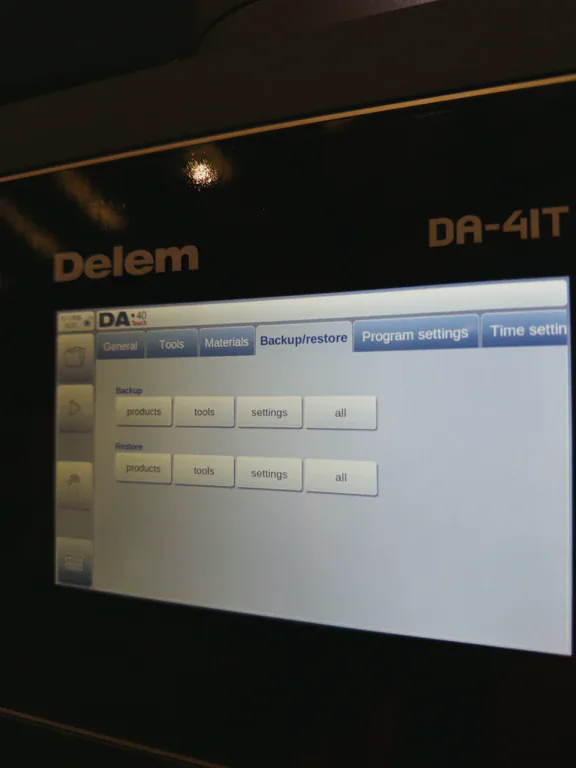

| Data transfer | USB flash drive backup & restore |
| Application | Conventional torsion bar press brake |
Tooling & setup
Tooling options for maximum versatility on affordable Rhino torsion bar press brakes — see below for the die and punch types used across the range.
The types of tooling used on our affordable torsion bar press brake range. For tooling configurations or custom solutions, please contact our team to discuss your specific requirements.
Versatile and precise bending tools
The most common bottom dies used in press brakes, offering multiple opening sizes to accommodate various material thicknesses and bending applications.
Efficient and smooth bending
Featuring a cylindrical design with an 88-degree V-notch, rotary bending dies provide reduced friction for smooth, precise bends while minimising material marking.
Ideal for bottom bending operations
Primarily used for bottom bending, delivering consistent and accurate bends. Die opening size is adjusted based on material thickness for optimal results.
Flexible air bending solutions
Designed for air bending, allowing acute, 90-degree and obtuse angles by adjusting punch stroke depth — maximum flexibility in forming operations.
Perfect for return flanging
Engineered to provide clearance for pre-formed flanges, allowing complex bends without interference — essential for return flanging applications.
One-stroke Z-bending efficiency
Combine a punch and die set that creates two precise bends in one stroke, forming Z-shaped profiles efficiently for a variety of sheet metal applications.
Two-stage bending for secure edges
Integrate an acute angle die with a flattening tool to produce secure, closed bends for reinforced sheet metal edges — commonly used in automotive and aerospace applications.
Precision sheet metal edge folding
Designed to fold sheet metal edges with precision, creating strong, reliable seams for joining, strengthening and reinforcement.
Machine architecture
Below is a high-level overview of the core technical specifications available across the Rhino torsion bar press brake range. Full model-specific specifications are provided further down the page.
Control System
7" widescreen colour TFT touchscreen with 1024 × 600 resolution and capacitive touch — store up to 100 programs with 25 steps each. Angle programming, tool library and material parameters on an ergonomic pendant mount.
7" TFT touchscreen • 100 × 25 programs • USB backup & restore
Bending System
Integrated torsion bar ensures balanced ram movement for consistent air bending accuracy across the full bed length — the proven affordable alternative to full CNC synchronisation.
Torsion bar sync • Motorised ram stroke • Depth stops
Back Gauge
Ball screw-driven motorised back gauge with tiltable finger stops — precise positioning for repeatable angle and dimension control.
Ball screw drive • Tiltable fingers • Standard 600mm travel
Tooling
Every machine includes Euro-style top tooling and segmented bottom tooling — with V-dies, gooseneck, hemming and specialist profiles available to expand capability.
Euro top tooling • Segmented bottom tooling • Quick-change clamping
Capacity Range
W67Y models from 40T to 400T nominal force with working lengths from 1.3M to 6M — 31 bed × tonnage configurations to scale power and bed length to your parts and materials.
W67Y series • 31 configurations • 1.3M–6M beds
Safety
Light curtain safety barriers, side and rear mechanical guards, and interlock switches — hydraulic and electrical overload protection as standard.
Light curtain • Mechanical guards • Overload protection
Installation & Warranty
Professional delivery, installation and operator training from Mantech UK engineers — 12-month parts and labour warranty with ongoing telephone and field support.
UK installation • Operator training • 12-month warranty
Model selection
Compare the most specified W67Y configurations — full technical data for every model in the range is listed below.
Capacity progression
Production standard
General fabrication and medium-duty production
80T · 3200mm torsion bar press brake for general fabrication and medium-duty production.
Compact entry
Entry-level workshops and light-gauge bending
Production power
Production sheet metal and sustained batch bending
Heavy production
Heavy-gauge production and high-duty bending
Technical comparison
Compare the most specified W67Y torsion bar configurations — working length, tonnage, throat depth and motor power side by side.
Specifications may vary depending on configuration — contact Mantech UK engineers for application-specific guidance on W67Y model selection.
Scroll to compare models
Horizontal scroll compares Spartan model specifications. The first column remains fixed while you review each model.
Full range
Complete technical specifications for every W67Y torsion bar press brake model — nominal force, working table length, throat depth, stroke, motor power, weight and dimensions.
Specifications may vary depending on configuration and electrical supply. Contact our team for the exact model suited to your material thickness, bend length and production duty.
Scroll to view all W67Y models
Horizontal scroll through the complete Rhino W67Y torsion bar range. The model column stays fixed while you review specifications.
Customer case studies — Spartan CNC router installations
Customer Case Study
Kes Power & Lighting Ltd A great service from Mantech Machinery from first contact, demonstration, sale, delivery and commissioning
— KES Power & Light Ltd
The Challenge: Before working with Mantech, KES Power & Light Ltd were facing issues with an outdated press brake. The control system had become non-functional, creating unnecessary downtime and limiting production capabilities.
The Solution: To address the problem, KES Power & Light Ltd invested in a new Press Brake from Mantech Machinery. The process was seamless from start to finish, with the team at Mantech providing a clear demonstration, handling the sale with professionalism, and ensuring a smooth delivery and commissioning process.
The Result: With the new Press Brake in place, operations have become more efficient, reliable, and better suited to the demands of modern electrical manufacturing.
UK engineering support
Every Rhino torsion bar press brake is delivered, commissioned and operator-trained by Mantech engineers — with UK-based parts, service and application advice for the life of your machine.
Support infrastructure
On-site delivery, levelling, commissioning and safety sign-off by Mantech press brake engineers before handover.
Hands-on training on DA-41T control, tooling setup, back gauge programming and safe production bending.
Premium parts and labour warranty included — excluding consumables — with UK-based technical support.
Dedicated UK after-sales team for application advice, spare parts and telephone support from Halesowen.
40T–400T · 1.3M–6M Range Delem DA-41T Control Euro Tooling Included UK Install & Warranty
Rhino torsion bar installs
Rhino torsion bar press brakes installed across UK fabrication workshops — from compact 40-tonne cells to 160-tonne and 200-tonne production lines.
Horizontal list: use touch or trackpad to scroll and see more installation stories.
Hydraulic Press Brake Installation – Wednesbury, West Midlands
View installation
Rhino W67K-100/3200 Press Brake Installed in Northern Ireland
View installation
Affordable Rhino CNC Press Brake Installed
View installation
Power & Precision – Rhino W67K-160/3200 Press Brake Installed in the UK
View installation
Rhino W67K-160/4000 Press Brake Installation – Power Meets Precision
View installation
Precision Engineering for Automotive Excellence – Rhino W67K 40/1600 Press Brake Installation in Kidlington
View installation
Rhino W67K-160/3200 Mechanical Press Brake Installed for a UK Customer!
View installation
Installation News – Rhino Premium CNC Press Brake at Newcastle University
View installation
80T Press Brake Installation – Carlow
View installation
Fabrication Customer In Dublin – Press Brake
View installation
North East Firm – Press Brake
View installation
Spraybooth Manufacturer – Press Brake
View installationA specialist will review your requirements and advise on the most suitable machine for your application. No obligation, no hard sell.
Complete the form below, and we’ll point you in the right direction.
Rhino torsion bar press brakes
Tell us your material thickness, bend length and production volume — a Mantech engineer will recommend the right W67Y configuration with no obligation.
