SC STANDARD · SC PRO · DIGITAL CUTTING
SC Range digital cutting tables for packaging, signage, POS and display work — knife, crease and router tooling with full UK delivery, installation and support from Mantech.
UK cutting table supply, install & support
Digital cutting technology
Replace fixed dies and outsourced plotting with a CNC platform built for short runs, packaging prototypes and repeatable production on board, foam and flexible materials.
Samples & one-offs without forme cost
Maximise Efficiency with High-Speed Digital Cutting Technology
Eliminate tooling costs, enable rapid prototyping and one-off samples, and improve finished quality without committing to wood form tooling.
±0.01 mm servo resolution
Unmatched Precision & Speed
SC Range digital cutting tables reach up to 1800 mm/s with repeat precision of ±0.05 mm — clean, detailed cuts with reduced waste.
Board · foam · textile · composite
What is a Digital Cutting Table and how does it work?
Processes foam, rubber, plastic, paper, fabrics, cardboard, reboard, carbon fibre fabric and more — complementary to fibre lasers on metals and CNC routers on timber.
Cartons · displays · structural board
Why Choose a Digital Cutting Table?
Versatile solution for packaging, signage, textiles and composites — from contract converters to in-house display and sample rooms.
Five Standard beds · PRO 350W router
DCT Model Range
SC Standard fixed-bed platforms from 1300 × 1100 mm to 2000 × 3000 mm. SC PRO matches those bed sizes with factory configuration for the 350W router tool attachment — the only tier difference on the same platform.
Halesowen HQ · field engineers
Supplied with Full UK Delivery, Installation & Support
Mantech supplies digital cutting tables across the UK with delivery, installation, operator training and dedicated after-sales support.
Digital cutting tables handle foam, card and flexible materials where a spindle router is the wrong tool. Read our guide to high-performance cutting tables for packaging workflows, the Unicon case study for foam conversion proof, and packaging installations from UK converters.
SC STANDARD · SC PRO
Nine SC Range configurations — five Standard fixed-bed sizes plus four PRO variants on matching bed formats. PRO adds factory support for the 350W router tool attachment.
Not sure which SC model fits? Our specialists compare Standard and PRO bed sizes against your sheet formats, materials and whether routing is part of your workflow.
SC platform: Up to 1800 mm/s · ±0.05 mm repeat · UK delivery, installation & 12-month warranty.
Compare SC modelsSC platform engineering
Shared engineering across every SC Standard and SC PRO configuration — high-speed servo cutting, dual tool positions and a rigid honeycomb vacuum bed built for daily production.
Cutting speed
Up to 1800 mm/s
Material dependent
Repeat precision
±0.05 mm
Production repeatability
Servo resolution
±0.01 mm
Fine path control
Max thickness
50 mm
Material dependent
Tool head
Dual quick-change
Cut · crease · draw · route
Vacuum bed
Zone suction
Honeycomb aluminium surface
Aerospace-grade honeycomb plate with felt surface — rigid, flat under load and optimised for even airflow across the cut area.
Standalone operator console with touch HMI, emergency stop and integrated space for your PC — quick parameter setup without crowding the bed.
Approximately 64 dB under normal cutting — practical for busy print finishers, sample rooms and customer-facing production areas.
Technical specification
| Parameter | Specification |
|---|---|
| Tooling & safety | |
| Multi-functional tool head | Dual quick-change tool head — cut, crease, draw and route in one setup |
| Standard tools | Electric oscillating tool · drag knife · plotting tool |
| Safety device | Infrared light-grid safety sensor |
| Performance | |
| Max. cutting speed | 1800 mm/s * |
| Max. cutting thickness | 50 mm * |
| Repeat precision | ±0.05 mm |
| Servo resolution | ±0.01 mm |
| Bed & control | |
| Material fixation | Vacuum hold-down · zone suction |
| Cut bed | Honeycomb aluminium plate with felt surface |
| Control console | Independent touch-screen console with emergency stop and PC bay |
| Operating noise | Approximately 64 dB |
| Cutting modes | Sheet · roll · irregular outlines |
| Drive & connectivity | |
| Transmission | Ethernet port |
| Drive system | Advanced servo · linear guide · synchronous belt · ball screw |
| Rated voltage | 380V ±10% |
* Maximum speed and thickness depend on material, tool and job settings.
Every SC includes
SC STANDARD · SC PRO
Compare Standard and PRO bed sizes — PRO matches Standard on the same platform with factory configuration for the 350W router tool attachment. UK delivery, installation and operator training included.
| Model | Cutting area | Configuration |
|---|---|---|
| SC1311 Digital Cutting Table SC1311 Digital Cutting Table | 1300 × 1100 mm 1300 × 1100 mm · Standard | Standard 575 kg · 8.5 kVA · 2204 × 2090 × 1345 mm |
| SC1325 Digital Cutting Table SC1325 Digital Cutting Table | 1300 × 2500 mm 1300 × 2500 mm · Standard | Standard 775 kg · 12.4 kVA · 2204 × 3571 × 1330 mm |
| SC1618 Digital Cutting Table SC1618 Digital Cutting Table | 1600 × 1800 mm 1600 × 1800 mm · Standard | Standard 790 kg · 12.4 kVA · 2504 × 2870 × 1330 mm |
| SC1625 Digital Cutting Table Popular format SC1625 Digital Cutting Table | 1600 × 2500 mm 1600 × 2500 mm · Standard | Standard 1080 kg · 12.4 kVA · 2504 × 3570 × 1330 mm |
| SC2030 Digital Cutting Table SC2030 Digital Cutting Table | 2000 × 3000 mm 2000 × 3000 mm · Standard | Standard 1350 kg · 12.4 kVA · 2904 × 4073 × 1330 mm |
| Model | Cutting area | Configuration |
|---|---|---|
| SC1325 PRO Digital Cutting Table SC1325 PRO Digital Cutting Table | 1300 × 2500 mm 1300 × 2500 mm · PRO | PRO 350W router tool attachment |
| SC1618 PRO Digital Cutting Table SC1618 PRO Digital Cutting Table | 1600 × 1800 mm 1600 × 1800 mm · PRO | PRO 350W router tool attachment |
| SC1625 PRO Digital Cutting Table SC1625 PRO Digital Cutting Table | 1600 × 2500 mm 1600 × 2500 mm · PRO | PRO 350W router tool attachment |
| SC2030 PRO Digital Cutting Table SC2030 PRO Digital Cutting Table | 2000 × 3000 mm 2000 × 3000 mm · PRO | PRO 350W router tool attachment |
SC Standard
Fixed-bed SC platforms for sign shops, display producers and packaging sample rooms — five bed sizes from compact 1300 × 1100 mm to 2000 × 3000 mm industrial format.
Five Standard bed sizes — knife, crease and router in one setup.
High-speed servo cutting for signage, display and packaging throughput — material dependent.
3D air-guiding duct design with honeycomb aluminium bed — stronger material stability across the full cut area.
Next-generation motion architecture — faster diagonal cuts and improved edge quality on complex paths.
Handles sheet stock, roll-fed work and irregular outlines for POS, banners and vehicle graphics.
SC PRO
SC PRO uses the same platform and bed sizes as Standard — the tier difference is factory configuration for the optional 350W router tool attachment when you need routing alongside knife and crease work.
Four PRO bed formats — identical to Standard except 350W router factory option.
SC PRO is factory-configured for the optional 350W router spindle — the only tier difference from SC Standard on the same bed size.
Identical servo motion, vacuum bed, oscillating knife, drag knife and plotting tools as Standard — routing added when your materials need it.
PRO variants mirror Standard cutting areas from 1300 × 2500 mm through 2000 × 3000 mm industrial sheet.

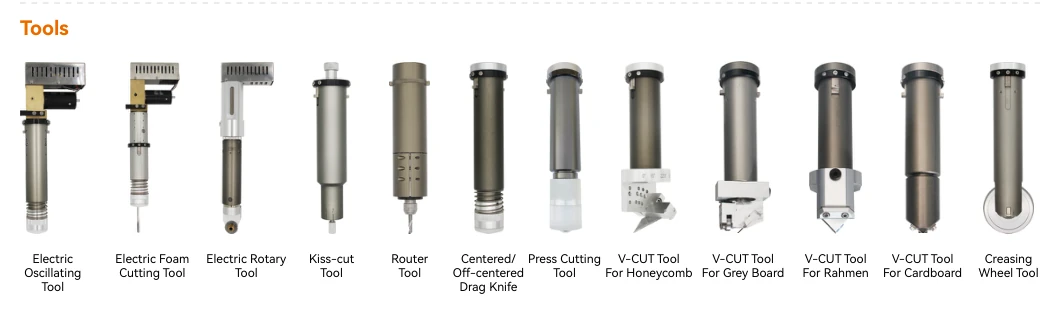

DCT tooling
Configure each SC platform with the cutting, creasing and marking heads your materials demand. SC PRO adds factory support for the 350W router attachment — the only tier difference from Standard on matching bed sizes.
High-frequency oscillating cut for corrugated board, honeycomb, KT board, PVC foam and thicker substrates.
Surface-layer cutting for labels, vinyl films and printed adhesive materials with camera alignment.
Fast through-cutting on materials up to 5 mm thick where oscillating speed is not required.
Registration mark scanning for contour cutting on pre-printed displays, packaging and signage.
Greyboard, honeycomb and cardboard grooving at adjustable angles for folds and structural POS.
Cut and mill acrylic, ACM, MDF, PVC foam and wood up to 20 mm depending on material. The 350W router attachment is the factory option on SC PRO — the only tier difference from Standard on matching bed sizes.
Textiles, banner fabric, dry carbon fibre and woven materials up to 8 mm thick.
EPP, EVA, pearl cotton and sponge materials up to 50 mm thick.
Packaging crease lines, anti-crack scoring on corrugated and controlled tear perforations.
Customer case study
Unicon Ltd needed a more agile way to handle smaller volume orders and one-off packaging samples. Relying on traditional wood form tooling was costly and inflexible — the switch to digital eliminated tooling costs, enabled rapid prototyping and improved finished quality.
The machine has given us faster turnaround for smaller volume orders and allowed us to provide one-off samples without committing to tooling costs during early design stages. We also now have more control over the quality of the finished product.
Applications
SC digital cutting tables excel on non-metallic flexible and semi-rigid materials — signage, lightboxes, POS displays, flags, banners, vehicle graphics and packaging board.
UK supply & support
Mantech supplies SC digital cutting tables across the UK — delivery, installation and operator training included on UK mainland orders, with warranty cover and lifetime technical assistance from Halesowen.
Support infrastructure
Expert on-site setup so your DCT is cutting production jobs from day one.
Hands-on training on control software, tool changeover and daily maintenance checks.
12-month parts and labour warranty with UK-held spares and consumables support.
Dedicated UK engineers for remote diagnostics, planned service and on-site call-outs.
9 SC Models Up to 1800 mm/s Multi-Tool DCT Board · Sign · POS
A Digital Cutting Table (DCT) is an advanced, high-speed cutting machine designed to process a wide variety of materials with exceptional precision and efficiency. These machines can cut foam, rubber, plastic, paper, fabrics, cardboard, reboard, carbon fibre fabric, and more, making them a versatile solution for industries such as packaging, signage, textiles, and composites.
DCT High-Speed Digital Cutting Machines are engineered for pinpoint accuracy and rapid operation, reaching speeds of up to 1,200 mm/s with a precision of 0.01 mm. This ensures clean, detailed cuts while reducing material waste and improving productivity.
These cutting machines operate using a digital control system, which seamlessly integrates with CAD/CAM software. The process includes:
Our DCT systems can be configured with a variety of cutting tools, including:
Available in Standard and Electric models, the Oscillating Cutting Tool is ideal for processing a wide range of materials with precision and efficiency. It is commonly used for cutting corrugated board, honeycomb board, fluted core (Correx), flexo plates, KT panels, Foamex, carpets, corrugated plastics, thin plastics (HIPS, PP sheets), gaskets, leather, and flexo glass, making it a versatile solution for diverse industries.
Our advanced Optical Recognition System ensures precise cutting of pre-printed substrates, such as UV-printed cardboard displays, signage, and packaging materials. The integrated camera scans registration marks and aligns them with the designated cut path in your file, guaranteeing high-accuracy contour cutting for perfectly finished projects.
Ideal for cutting honeycomb board, greyboard, and reboard, the Multi-Angled V-Cut Tool features an adjustable blade that allows for precise folding and bevel cutting. With cutting angles of 0°, 15°, 22.5°, 30°, and 45°, this tool enhances structural design capabilities, making it perfect for packaging, displays, and architectural modelling.
Upgrade your Digital Cutting Table with a router tool, allowing you to process a broader range of materials with precision. This versatile addition enables cutting and engraving on acrylic, Dibond/ACM board, MDF, epoxy panels, PVC board, PAL board, and wood, with cutting depths of up to 15mm, depending on the material. Perfect for signage, displays, and industrial applications.
Our Rotary tool is the perfect companion to process fabrics, carbon fibre/glass fibre, fur, grid cloth, textiles, banner/flag materials. This tool can process up to 8mm in thickness.
The plotting pen attachment is perfect for sketching/marking out designs onto materials with high accuracy and speed.
Perfect for processing thin multi-layered materials such as printed vinyl, vinyl, reflective vinyl and magnetic sheets (can also be pr-printed).
The Perforation Tool is perfect for creating tear-away sections on various materials. Ideal for applications such as tissue boxes, food packaging, and promotional displays, this tool enables easy-to-remove sections while maintaining material integrity, ensuring clean, controlled perforations for efficient packaging solutions.
Not sure which DCT model is right for you? Our team can help.
Every CNC router includes Vectric VCarve Pro as standard, with upgrade options to Aspire or Alphacam for advanced users. VCarve Pro is a professional CAD/CAM package built specifically for CNC routing — covering design, toolpath creation and production workflows in a single environment. It enables 2D design creation with profile, pocket, drill, and inlay toolpaths, along with v-carving textures. Import and machine unlimited Vectric 3D clipart or individual model files effortlessly. The Pro version also offers unlimited job sizes, true shape nesting, and detailed job setup sheets, making it ideal for production settings. Training on VCarve Pro is included with every CNC router purchase to ensure seamless integration into your operations.
Digital cutting tables
Thousands of machines supplied across UK manufacturers and creative industries. Ask us for a quotation — a specialist will review your materials, throughput and tooling requirements.
