Titan T6524 Tube Fibre Laser

Tube fibre laser for UK pipe, RHS and structural profile cutting — 2-chuck vertical system, 4000–6000 mm capacity and 3kW or 6kW power.

4000–6000 mm
3kW · 6kW
2-chuck vertical · φ10–φ230 mm round (manual)
FSCUT3000DE-M · TubesT · UK support

Request a Quote Compare fibre laser ranges

View customer installs →

0121 541 1444 · UK sales & engineering

Titan T6524 Tube Fibre Laser Precision tube and profile fibre laser for production pipe, RHS and structural profile cutting The Titan T6524 is a tube fibre laser for UK fabrication workshops running pipe, RHS, SHS and structural profile cutting as a core production process. A 2-chuck vertical system with movable front chuck supports stable rotation across the tube range selected for your loading method: manual loading reaches the largest envelope, while semi-automatic and fully automatic loading use smaller quoted limits. Loading and unloading systems are order options — one intake method is chosen and quoted when you order, not supplied as standard with every machine. Built for handrail manufacturers, structural steel fabricators, furniture frame producers and subcontract tube cutting businesses where clean mitres, accurate hole patterns and repeatable profile cuts reduce weld prep and assembly time — supplied, installed and supported in the UK by Mantech. 2-chuck vertical system with movable front chuck on two guide rails — stable rotation on round and square profiles Manual loading option: φ10–230 mm round · □10–230 mm square · channel / I-beam up to 20# Semi-automatic loading option: φ20–200 mm round · □20–200 mm square · 100 kg chuck load Fully automatic loading option: φ20–160 mm round · □20–150 mm square 4000–6000 mm material length capacity for production tube and structural cut lengths FSCUT3000DE-M control with TubesT small-tube edition nesting (included) · INOVANCE servo drive 3kW or 6kW MAX fibre laser — X/Y 70 m/min · B 70 RPM · matched to wall thickness and daily duty Supplied, installed, commissioned and supported in the UK by Mantech The Titan T6524 is a tube fibre laser for UK fabrication workshops running pipe, RHS, SHS and structural profile cutting as a core production process. A 2-chuck vertical system with movable front chuck supports stable rotation across the tube range selected for your loading method: manual loading reaches the largest envelope, while semi-automatic and fully automatic loading use smaller quoted limits. Loading and unloading systems are order options — one intake method is chosen and quoted when you order, not supplied as standard with every machine. Built for handrail manufacturers, structural steel fabricators, furniture frame producers and subcontract tube cutting businesses where clean mitres, accurate hole patterns and repeatable profile cuts reduce weld prep and assembly time — supplied, installed and supported in the UK by Mantech. Choose 3kW or 6kW MAX fibre laser on the same T6524 platform — match source output to wall thickness mix and daily production duty. FSCUT3000DE-M control with TubesT small-tube edition nesting — 3D tube-to-cut programming, efficient nest layout and repeatable design-to-cut workflow for production profile work. Tube cutting throughput depends on stable chuck handling, efficient nest layout and minimising non-cutting time between profiles. The T6524 combines 2-chuck vertical rotation with TubesT 3D nesting so operators move from drawing to cut lengths with a repeatable production rhythm. Every Titan T6524 is delivered, positioned, commissioned and supported by Mantech UK engineers. Tube lasers need correct siting, level foundations, chuck alignment, extraction routing and verified services. All of our Fibre Laser Cutters include UK mainland delivery and comprehensive training. Our expert engineers will guide you through machine operation and software usage. Dual vertical chucks with a movable front chuck deliver stable tube rotation and efficient material handling across round, square and structural profiles. Pneumatic variable-diameter centering rollers stabilise profiles through the cut zone on production tube and structural sections. Optional semi-automatic or fully automatic tube loading is quoted at order — manual loading provides the largest profile envelope for mixed structural work. Titan T6524 tube fibre laser with 4000–6000 mm material length, 2-chuck vertical system, FSCUT3000DE-M control, TubesT nesting and 3kW or 6kW MAX power — supplied, installed and supported in the UK by Mantech. Tube fibre laser for UK pipe, RHS and structural profile cutting — 2-chuck vertical system, 4000–6000 mm capacity and 3kW or 6kW power. 4000–6000 mm 3kW · 6kW 2-chuck vertical · φ10–φ230 mm round (manual) FSCUT3000DE-M · TubesT · UK support 4000–6000 mm · 3kW · 6kW · 2-chuck vertical · FSCUT3000DE-M + TubesT

UK supply, install & support

UK installation Delivery, commissioning and operator training included

UK engineers Nationwide after-sales support from Mantech technicians

Titan T6524 installs See real production sites using Titan T6524 fibre lasers

Google reviews 154 Google reviews and counting

4000–6000 mm
3kW · 6kW
2-Chuck Vertical System2-chuck vertical (movable front chuck) · two guide rails
UK Install & Training3-phase 380 V / 50 Hz
154 Google reviews and counting

Why choose Titan

Why Choose the Titan T6524

2-chuck vertical handling, loader-specific tube capacity, FSCUT3000DE-M control with TubesT nesting and UK-backed support — production profile cutting without flatbed shuttle complexity.

2-chuck tube platform

2-chuck vertical system

Suited to workshops cutting mixed profile lengths where stable rotation and tail management directly affect material yield.

2-chuck vertical system

Loader-specific capacity

Important when selecting the right intake system for handrail pipe, RHS frames and mixed structural profiles.

Loader-specific capacity

4000–6000 mm capacity

For fabricators quoting standard 6 m stock lengths and production frame packages through the week.

4000–6000 mm capacity

Technical features

FSCUT & TubesT workflow

FSCUT3000DE-M control with TubesT small-tube edition nesting — 3D tube-to-cut programming, efficient nest layout and repeatable design-to-cut workflow for production profile work.
3kW or 6kW power

Match MAX source output to wall thickness mix and daily tube duty rather than over-specifying for occasional heavy-wall work.
UK supply & support

Supplied, installed, commissioned and supported by Mantech UK engineers — with operator training, UK-held spare parts and lifetime technical support from our Midlands headquarters.

Need help choosing tube loading and power for your profile mix?

Compare Titan flatbed and tube platforms on the fibre laser hub, or speak with a Mantech engineer about your tube sizes and daily cutting duty.

Compare Titan & Vector ranges Speak To An Engineer

The T6524 suits workshops running pipe, RHS and structural profile cutting as a core production process. Compare Titan tube and flatbed platforms on the fibre laser hub, or browse installations from UK shops running tube lasers.

The Titan T6524 is a tube fibre laser for UK fabrication workshops running pipe, RHS, SHS and structural profile cutting as a core production process. A 2-chuck vertical system with movable front chuck supports stable rotation across the tube range selected for your loading method: manual loading reaches the largest envelope, while semi-automatic and fully automatic loading use smaller quoted limits. Loading and unloading systems are order options — one intake method is chosen and quoted when you order, not supplied as standard with every machine.

Built for handrail manufacturers, structural steel fabricators, furniture frame producers and subcontract tube cutting businesses where clean mitres, accurate hole patterns and repeatable profile cuts reduce weld prep and assembly time — supplied, installed and supported in the UK by Mantech.

2-chuck vertical system

Dual vertical chucks with a movable front chuck deliver stable tube rotation and efficient material handling across round, square and structural profiles. The front chuck moves to optimise support for different cut lengths and minimise tail waste on production runs.

Suited to workshops cutting mixed profile lengths where stable rotation and tail management directly affect material yield.

Loader-specific capacity

Profile capacity depends on the loading method quoted. Manual loading provides the largest range: φ10–230 mm round and □10–230 mm square, plus channel / I-beam up to 20#. Semi-automatic loading is rated to φ20–200 mm round and □20–200 mm square; fully automatic loading is rated to φ20–160 mm round and □20–150 mm square.

Important when selecting the right intake system for handrail pipe, RHS frames and mixed structural profiles.

4000–6000 mm capacity

Material length capacity supports production cut lengths, frame assemblies and typical UK subcontract tube packages. Loading and unloading systems are order options — chosen and quoted at the point of order, not supplied as standard equipment.

For fabricators quoting standard 6 m stock lengths and production frame packages through the week.

FSCUT & TubesT workflow

FSCUT3000DE-M control with TubesT small-tube edition nesting — 3D tube-to-cut programming, efficient nest layout and repeatable design-to-cut workflow for production profile work.

When programming time and nest quality directly affect how many good cut lengths leave each tube.

3kW or 6kW power

Choose 3kW or 6kW MAX fibre laser on the same T6524 platform. Match source output to wall thickness mix and daily production duty rather than over-specifying for occasional heavy-wall work.

For workshops planning growth — start at the tier that fits today’s tube gauge mix and upgrade source output if demand increases.

UK supply & support

Supplied, installed, commissioned and supported by Mantech UK engineers — with operator training, UK-held spare parts and lifetime technical support from our Midlands headquarters.

For buyers who need a machinery partner that stays involved after delivery, not just a box supplier.

Buyer overview

Titan T6524 at a glance

Precision tube and profile fibre laser for production pipe, RHS and structural profile cutting

Ideal for

Handrail, balustrade and architectural metalwork specialists cutting round and square tube daily
Structural steel fabricators processing RHS, SHS, channel and angle for frames and assemblies
Furniture and display fabricators producing tube frames, bases and structural supports
Subcontract tube cutting businesses quoting profile blanks, cut lengths and mitered joints

Typical applications

Handrails & balustrades
Structural tube fabrication
Furniture & display frames
Subcontract tube cutting
Automotive & engineering tube
Architectural metalwork

Precision tube and profile fibre laser for production pipe, RHS and structural profile cutting

Handrails & balustrades

Stair rails, balcony balustrades, guard rails, post sections, base plates and mitered corner joints

Clean miter cuts and accurate hole patterns reduce weld prep and on-site adjustment — important when rails must align across a staircase or balcony run.

Structural tube fabrication

RHS and SHS cut lengths, frame members, bracing tube, connection stubs and assembly blanks

Laser-cut tube arrives weld-ready with consistent joint geometry — reducing fit-up time before welding and fabrication.

Furniture & display frames

Table bases, chair frames, display stands, retail fixtures and tubular support structures

Programme once and repeat — TubesT nesting and chuck handling support batch production of frame components with minimal setup between orders.

Subcontract tube cutting

Customer-supplied tube blanks, profile cut lengths, mitered joints and drawing-led batch orders

In-house tube laser throughput supports profitable subcontract packages with clean edges and minimal secondary finishing.

Automotive & engineering tube

Chassis tube sections, reinforcement tubes, exhaust sections, fixture tube and specialist tubular parts

Fast 3D tube programming and stable chuck handling support scheduled production releases and development prototypes on the same platform.

Architectural metalwork

Canopy frames, stair strings, feature tube screens, cladding supports and decorative profile sections

Consistent miter quality and hole positioning support assembly-ready architectural tube work priced on delivery reliability.

Power configuration

Choose your laser power

Two power tiers on one T6524 tube platform — matched to your profile mix and daily tube volume with 2-chuck handling built in.

PRODUCTION ENTRY

3kW

Sensible specification when daily tube work is mostly lighter gauge RHS, round pipe and prototyping runs.

Electrical supply: 3-phase 380 V / 50 Hz
Best suited for: Thin to medium wall mild steel, stainless and aluminium tube for general fabrication and lighter-gauge profile work.

6kW

The practical default when one machine must handle most quoted tube work at higher daily throughput.

Electrical supply: 3-phase 380 V / 50 Hz
Best suited for: Balanced high-productivity output for mixed tube and profile workshops running heavier wall and production-duty cutting through the week.

Tube loading method — manual, semi-automatic or fully automatic — is chosen and quoted at order. One intake option is supplied per machine; see the standard package below.

Not sure which power tier fits your tube wall mix?

Our UK engineers will recommend 3kW or 6kW based on your typical profile sizes, wall thickness and daily tube cutting duty.

Request T6524 quote 0121 541 1444

Control software

FSCUT control & TubesT nesting

3kW FSCUT3000DE-M
6kW FSCUT3000DE-M

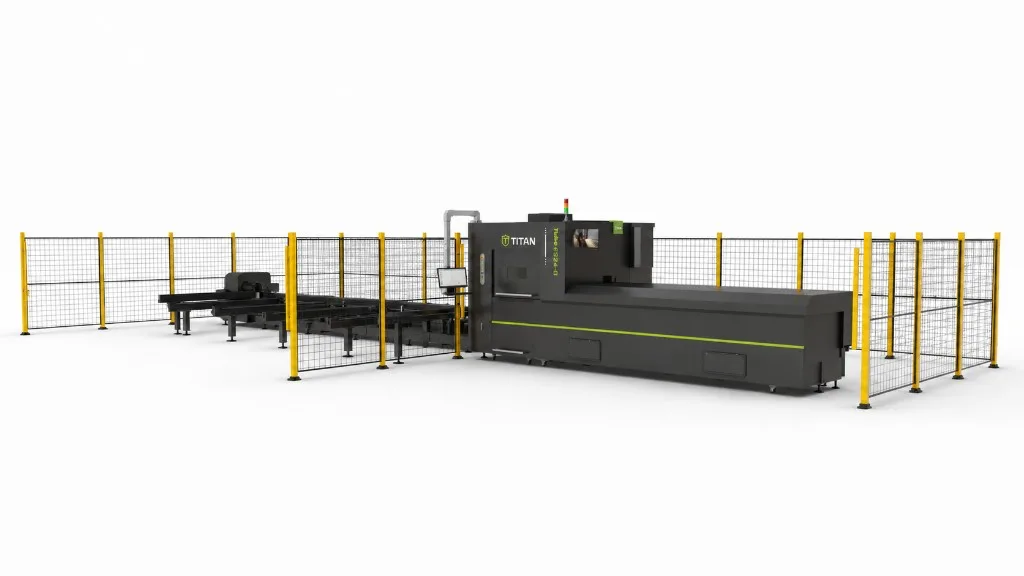

Titan T6524 FSCUT3000DE-M control station and tube cutting platform — FSCUT3000DE-M control station on the Titan T6524 tube platform — configured and commissioned by Mantech UK engineers.

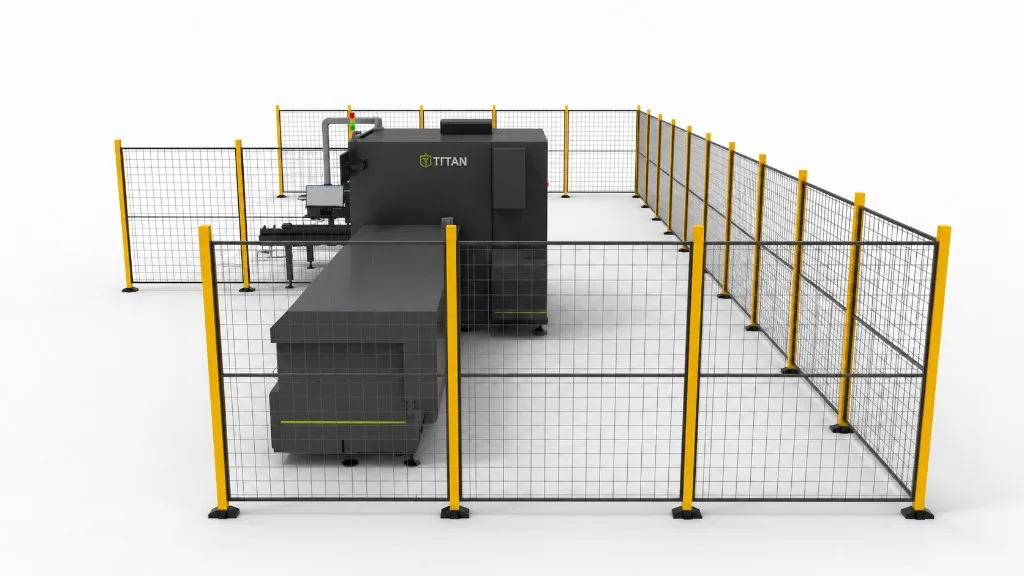

2-chuck vertical tube handling and cutting zone

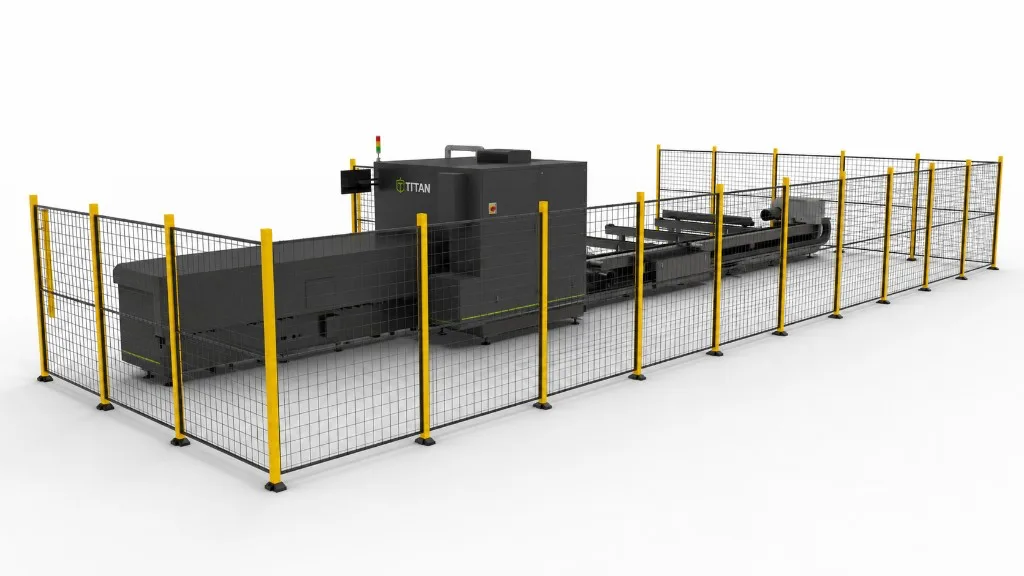

Titan T6524 tube fibre laser — production platform for round, square and structural profiles — Titan T6524 production platform — round, square and structural profiles

Tube CNC control

FSCUT3000DE-M Control

FSCUT3000DE-M is the operational control layer on Titan T6524 tube lasers — tube-specific cutting parameters, chuck rotation, production job management and BOCI cutting head integration for daily profile work.

Windows PC interface designed for industrial tube production
Tube-specific cutting parameters and B-axis rotation control
Production scheduling and job queue tools for mixed orders
Material and technology libraries for repeatable tube parameters
Integrated with BOCI autofocus cutting head and assist gas routing
Diagnostics and support from Mantech UK engineers

Design to cut length

TubesT 3D Nesting

TubesT small-tube edition lays out cuts along tube length for maximum material utilisation — 3D tube programming from drawing import through to FSCUT-ready programmes. Internet required for activation and monthly validation; professional edition optional.

3D tube programming for round, square and structural profiles
Nest layout along tube length to reduce tail waste
Miter joints, holes and features in one production nest
Import customer drawings and production release data
Programme transfer to FSCUT3000DE-M for cutting
Professional edition optional for advanced tube CAM

Tube design-to-cut workflow

Drawing import

Customer order or production release triggers 3D tube programming
TubesT nesting

Cuts laid out along 4000–6000 mm tube length for material yield
Tube loading

Stock loaded via your ordered intake method — manual, semi-automatic or fully automatic
Profile cutting

Laser cuts mitres, holes and features with chuck rotation on FSCUT
Cut length removal

Finished cut lengths removed while next tube is prepared
Quality check

Joint geometry and hole positions checked against drawing

Every Titan T6524 pairs FSCUT3000DE-M tube CNC control with TubesT small-tube edition nesting — 3D tube-to-cut programming, efficient nest layout along stock length and repeatable design-to-cut workflow for production profile work. Configured on-site by Mantech UK engineers before handover.

On 4000–6000 mm tube stock, TubesT nests cuts along the length while FSCUT manages chuck rotation, pierce strategy and production sequencing — the same design-to-cut path production teams expect on tube work.

Titan T6524 uses FSCUT3000DE-M tube CNC control with TubesT small-tube edition nesting — 3D tube programming, nest layout along stock length and production scheduling.

Windows PC interface designed for industrial tube production

Tube-specific cutting parameters and B-axis rotation control

Production scheduling and job queue tools for mixed orders

Material and technology libraries for repeatable tube parameters

Integrated with BOCI autofocus cutting head and assist gas routing

Diagnostics and support from Mantech UK engineers

3D tube programming for round, square and structural profiles

Nest layout along tube length to reduce tail waste

Miter joints, holes and features in one production nest

Import customer drawings and production release data

Programme transfer to FSCUT3000DE-M for cutting

Professional edition optional for advanced tube CAM

Technical specification

Key Specifications

Precision tube and profile fibre laser for production pipe, RHS and structural profile cutting

Material Length

4000–6000 mm material length
Laser Power Range

3kW · 6kW
Round Tube (manual loading)

φ10–φ230 mm
Control System

FSCUT3000DE-M

TubesT small-tube edition included · professional edition optional · internet required for activation and monthly validation
Chuck System

2-chuck vertical system (BYT, DRK optional) · front chuck movable · two guide rails
Installation Included

UK delivery, install & training

Full Technical Specification

Titan T6524 — technical specification datasheet
Specification	Titan T6524
Machine specification
Model	T6524
Material length	4000–6000 mm
Laser power options	3kW · 6kW
Manual round tube clamping range	10–230 mm round tube
Manual square tube clamping range	10–230 mm square tube
Structural profile clamping	Channel 10–22 · I-beam 10–22 · Angle 2.5–21 · H-beam 10–22
Profile capacity (with loading system)	Channel / I-beam / H-beam sections 10–20 · angle sections 2–11 · round / square tube per loader rating
Chuck system	2-chuck vertical (movable front chuck) · two guide rails
Chuck type	BYT standard · DRK optional · 240 mm square hole
Max chuck bearing load	260 kg
Manual chuck load rating	240 kg
Max positioning speed	X/Y 70 m/min · B 70 RPM
Max positioning acceleration	Y 0.8G · B 80 rad/s²
Axis travel (X × Y × Z)	405 × 6960 × 310 mm
Min wall thickness	1 mm minimum (material, diameter and chuck pressure dependent)
Tail material length	65 mm (<100 mm section) · 100 mm (>100 mm section) · 120 mm optional DRK chuck · 0 mm optional servo avoidance
Bevel cutting	Not available
Loading system	Manual loading supplied as standard · semi-automatic and fully automatic loading optional
Semi-automatic loader (optional)	100 kg chuck load · 4000–6000 mm · 4-piece capacity · 15.3 kg/m bearing
Bundle loader (optional)	2000 kg bundle · 200 kg single pipe · 4000–6500 mm
Unloading support (optional)	2 m or 4 m flip-down support (non-floating)
Centering support	Pneumatic variable-diameter rollers · 3 support points · 240 kg max (80 kg/point)
Laser source	MAX
Cutting head	BOCI
CNC control	FSCUT3000DE-M (BOCHU)
Nesting software	TubesT small-tube edition included · professional edition optional · internet required for activation and monthly validation
Drive system	INOVANCE servo · MOTOREDUCER gear and reducer
Assist gas	AIR/N2 (high pressure) · O2 (low pressure) · 2-way gas intake
Chiller	S&A
Electrical supply	3-phase 380 V / 50 Hz
Supply & support	UK delivery, install, commissioning, training & warranty
Warranty	24-month parts and labour warranty with UK-based technical support
Power	3kW
Material length	4000–6000 mm material length
Laser power	3kW
Capacity	4000–6000 mm material length
Loading method	Manual loading (standard)
Order configuration	Manual loading configuration — largest profile envelope
Chuck system	2-chuck vertical system (BYT, DRK optional) · front chuck movable · two guide rails
Round tube range	10–230 mm round tube
Square tube range	10–230 mm square tube
Chuck load	240 kg
Structural profiles with loader	Channel / I-beam sections up to 20
Max chuck speed	70 RPM (B-axis)
Max table load	260 kg max chuck bearing · 240 kg manual chuck load
Alternative loading configurations	Manual, semi-automatic and fully automatic are separate order variants — one loading method is quoted per machine
Centering support	Pneumatic variable-diameter rollers · 3 points · 240 kg max (80 kg/point)
Assist gas	AIR/N2 (high) · O2 (low) · 2-way gas intake
Loading method	Semi-automatic loading (optional)
Order configuration	Semi-automatic loader configuration — quoted instead of manual or fully automatic intake
Round tube range	20–200 mm round tube
Square tube range	20–200 mm square tube
Chuck load	100 kg
Loading length	4000–6000 mm
Loader capacity	4-piece · 15.3 kg/m
Loading method	Fully automatic loading (optional)
Order configuration	Fully automatic loader configuration — quoted instead of manual or semi-automatic intake
Round tube range	20–160 mm round tube
Square tube range	20–150 mm square tube
Power	6kW
Laser power	6kW
Machine dimensions
Machine weight	≈4200 kg (without loading & unloading system)
Overall dimensions	9450 × 1945 × 2390 mm (loading/unloading system not included)

Loading options: standard vs optional

Manual loading is the standard T6524 configuration. Semi-automatic and fully automatic loading are optional order configurations quoted to match your tube sizes, handling method and production flow.

Manual loading (standard)

10–230 mm round tube · 10–230 mm square tube · channel / I-beam sections up to 20

Semi-automatic loading (optional)

20–200 mm round tube · 20–200 mm square tube · 100 kg chuck load

Fully automatic loading (optional)

20–160 mm round tube · 20–150 mm square tube

Model: T6524

Material length: 4000–6000 mm

Laser power options: 3kW · 6kW

Manual round tube clamping range: φ10–φ230 mm

Manual square tube clamping range: □10–□230 mm

Structural profile clamping: Channel 10#–22# · I-beam 10#–22# · angle 2.5#–21# · H-beam 10#–22#

Profile capacity (with loading system): Channel/I-beam/H-beam 10#–20# · angle 2#–11# · round/square per loader rating

Chuck system: 2-chuck vertical (movable front chuck) · two guide rails

Chuck type: BYT standard · DRK optional · 240 mm square hole

Max chuck bearing load: 260 kg

Manual chuck load rating: 240 kg

Max positioning speed: X/Y 70 m/min · B 70 RPM

Max positioning acceleration: Y 0.8G · B 80 rad/s²

Axis travel (X × Y × Z): 405 × 6960 × 310 mm

Min wall thickness: 1 mm minimum (material, diameter and chuck pressure dependent)

Tail material length: 65 mm (<100 mm section) · 100 mm (>100 mm section) · 120 mm optional DRK chuck · 0 mm optional servo avoidance

Bevel cutting: Not available

Loading system: Manual · semi-automatic · fully automatic (optional) — clamp ranges vary by loader type

Semi-automatic loader: 100 kg chuck load · 4000–6000 mm · 4-piece capacity · 15.3 kg/m bearing

Bundle loader (optional): 2000 kg bundle · 200 kg single pipe · 4000–6500 mm

Unloading support (optional): 2 m or 4 m flip-down support (non-floating)

Centering support: Pneumatic variable-diameter rollers · 3 support points · 240 kg max (80 kg/point)

Laser source: MAX

Cutting head: BOCI

CNC control: FSCUT3000DE-M (BOCHU)

Nesting software: TubesT small-tube edition included · professional edition optional · internet required for activation and monthly validation

Drive system: INOVANCE servo · MOTOREDUCER gear and reducer

Assist gas: AIR/N2 (high pressure) · O2 (low pressure) · 2-way gas intake

Chiller: S&A

Machine weight: ≈4200 kg (without loading & unloading system)

Overall dimensions: 9450 × 1945 × 2390 mm (loading/unloading system not included)

Electrical supply: 3-phase 380 V / 50 Hz

Supply & support: UK delivery, install, commissioning, training & warranty

Warranty: 24-month parts and labour warranty with UK-based technical support

Power: 3kW

Material length: 4000–6000 mm material length

Laser power: 3kW

Capacity: 4000–6000 mm material length

Loading method: Manual

Order configuration: Manual loading configuration — largest profile envelope

Chuck system: 2-chuck vertical system (BYT, DRK optional) · front chuck movable · two guide rails

Round tube range: φ10–φ230 mm

Square tube range: □10–□230 mm

Chuck load: 240 kg

Structural profiles with loader: Channel / I-beam up to 20#

Max chuck speed: 70 RPM (B-axis)

Max table load: 260 kg max chuck bearing · 240 kg manual chuck load

Alternative loading configurations: Manual, semi-automatic and fully automatic are separate order variants — one loading method is quoted per machine

Centering support: Pneumatic variable-diameter rollers · 3 points · 240 kg max (80 kg/point)

Assist gas: AIR/N2 (high) · O2 (low) · 2-way gas intake

Loading method: Semi-automatic

Order configuration: Semi-automatic loader configuration — quoted instead of manual or fully automatic intake

Round tube range: φ20–φ200 mm

Square tube range: □20–□200 mm

Chuck load: 100 kg

Loading length: 4000–6000 mm

Loader capacity: 4-piece · 15.3 kg/m

Loading method: Fully automatic

Order configuration: Fully automatic loader configuration — quoted instead of manual or semi-automatic intake

Round tube range: φ20–φ160 mm

Square tube range: □20–□150 mm

Power: 6kW

Laser power: 6kW

Standard package

Every Titan T6524 includes

UK delivery, installation, commissioning and operator training — plus MAX fibre laser source, BOCI cutting head, S&A chiller, FSCUT3000DE-M control and TubesT small-tube edition nesting. Tube loading method is chosen and quoted at order.

UK delivery & installation Site survey, levelling, chuck alignment and commissioning
Operator training Tube loading, chuck operation, TubesT programming and daily checks
MAX fibre laser source 3kW or 6kW configuration on the same T6524 platform
BOCI cutting head Autofocus head for consistent tube wall cutting quality
TubesT small-tube edition 3D tube nesting included — internet required for activation
Full UK warranty Supported by Mantech UK engineers — not import-only supply

Material capability

Materials and profiles the T6524 cuts

Fibre laser tube and profile cutting on mild steel, stainless steel and aluminium tube — plus channel, I-beam, angle and H-beam when manual loading is quoted. Power tier and wall thickness determine achievable gauge.

Mild steel tube

Cutting parameters available for Mild steel tube

Stainless steel tube

Cutting parameters available for Stainless steel tube

Aluminium tube

Cutting parameters available for Aluminium tube

Structural profiles (channel, I-beam, angle, H-beam)

Cutting parameters available for Structural profiles (channel, I-beam, angle, H-beam)

UK support

Installation, training & aftercare

Supplied, installed, commissioned and supported in the UK by Mantech

Request a quote 0121 541 1444

UK sales & engineering

Support infrastructure

Pre-installation planning

Power, compressed air, extraction routing and tube loading layout confirmed before delivery
Commissioning

Chuck alignment, axis travel and test programmes on your typical tube profiles
Operator training

Tube loading, TubesT programming, FSCUT operation and daily maintenance essentials
Spares & service

UK-held parts and engineer call-out when production must stay online

2-chuck vertical system with movable front chuck on two guide rails — stable rotation on round and square profiles
Manual loading option: φ10–230 mm round · □10–230 mm square · channel / I-beam up to 20#
Semi-automatic loading option: φ20–200 mm round · □20–200 mm square · 100 kg chuck load
Fully automatic loading option: φ20–160 mm round · □20–150 mm square
4000–6000 mm material length capacity for production tube and structural cut lengths

FSCUT3000DE-M control with TubesT small-tube edition nesting — 3D tube-to-cut programming, efficient nest layout and repeatable design-to-cut workflow for production profile work.

Supplied, installed, commissioned and supported in the UK by Mantech

Pre-installation planning

Power, compressed air, extraction routing and tube loading layout confirmed before delivery

Commissioning

Chuck alignment, axis travel and test programmes on your typical tube profiles

Operator training

Tube loading, TubesT programming, FSCUT operation and daily maintenance essentials

Spares & service

UK-held parts and engineer call-out when production must stay online

2-chuck vertical system with movable front chuck on two guide rails — stable rotation on round and square profiles

Manual loading option: φ10–230 mm round · □10–230 mm square · channel / I-beam up to 20#

Semi-automatic loading option: φ20–200 mm round · □20–200 mm square · 100 kg chuck load

Fully automatic loading option: φ20–160 mm round · □20–150 mm square

4000–6000 mm material length capacity for production tube and structural cut lengths

Fibre laser installs

Fibre Laser Installations

Thousands of machines installed across UK manufacturers and engineering companies

Horizontal list: use touch or trackpad to scroll and see more installation stories.

Loading and unloading systems are order options — one intake method is chosen and quoted when you order, not supplied as standard with every machine.

Fibre Laser Cutters UK

Request a Quick Quotation

Additionally, we provide lifetime technical support via telephone and email, ensuring you have ongoing access to expert assistance whenever you need it.

Complete the form for a fibre laser quotation — UK installation and training included.

01 Contact details

First name

Last name

Company

Phone

02 Location / business

Country

Region / postcode

Business type or industry

03 Machine interest

Which machine range are you interested in?

Bed size / format if known

Materials you plan to machine

Production level / expected use

04 Project information

Tell us about your project

Materials, sheet sizes, production volumes, or specific models you are considering.

05 Preferences

I would like to book a demonstration I agree that Mantech may contact me about this enquiry. Privacy Policy and Terms of Sale

Loading and unloading systems are order options — one intake method is chosen and quoted when you order, not supplied as standard with every machine.

Choose 3kW or 6kW MAX fibre laser on the same T6524 platform — match source output to wall thickness mix and daily production duty.

FSCUT3000DE-M control with TubesT small-tube edition nesting — 3D tube-to-cut programming, efficient nest layout and repeatable design-to-cut workflow for production profile work.

Tube cutting throughput depends on stable chuck handling, efficient nest layout and minimising non-cutting time between profiles. The T6524 combines 2-chuck vertical rotation with TubesT 3D nesting so operators move from drawing to cut lengths with a repeatable production rhythm.

Every Titan T6524 is delivered, positioned, commissioned and supported by Mantech UK engineers. Tube lasers need correct siting, level foundations, chuck alignment, extraction routing and verified services.

All of our Fibre Laser Cutters include UK mainland delivery and comprehensive training. Our expert engineers will guide you through machine operation and software usage.

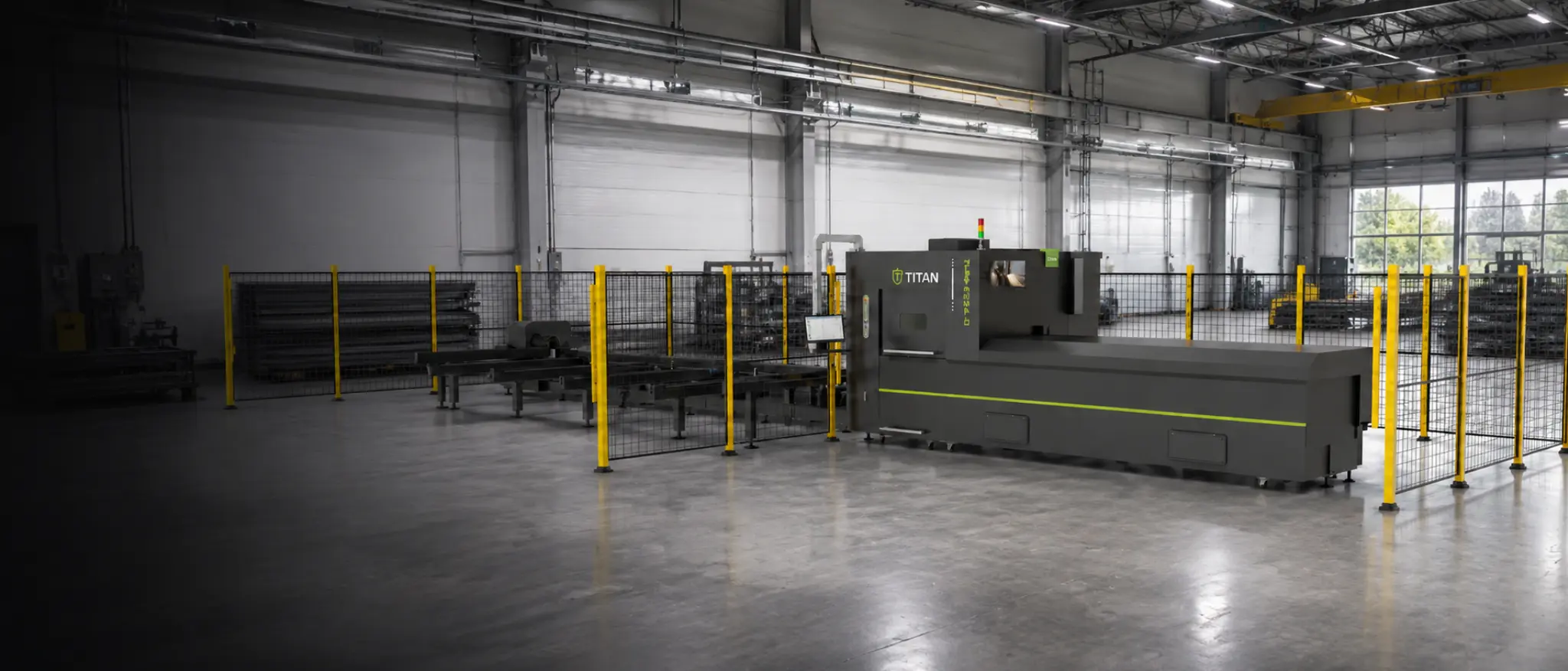

Dual vertical chucks with a movable front chuck deliver stable tube rotation and efficient material handling across round, square and structural profiles.

Pneumatic variable-diameter centering rollers stabilise profiles through the cut zone on production tube and structural sections.

Optional semi-automatic or fully automatic tube loading is quoted at order — manual loading provides the largest profile envelope for mixed structural work.
